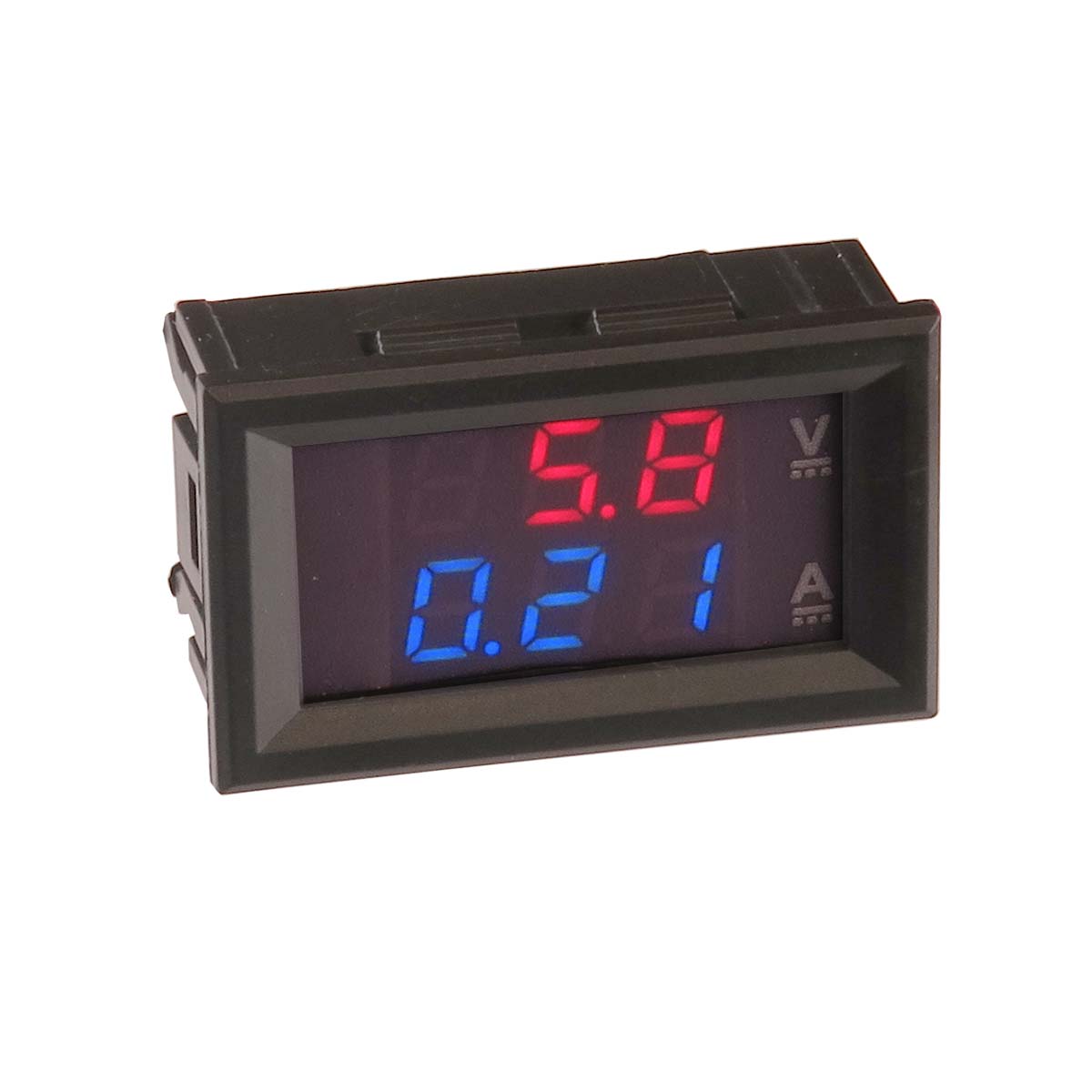

G27177 ~ Unique Miniature Dual Voltage/Current Digital Meter 100VDC and 0-10Amps DC
Miniature Dual Voltage and Current Digital Meter measures 0-100V in red digits and 0-10Amps in blue digits. Operates on 4 to 28 VDC supply voltage. Size of digits are 0.27" tall. Overall size of unit is 1.14" x 1.9" x 0.87" (excluding connectors). Designed to "snap in" a 1.06" x 1.8" hole for mounting. Very attractive, bright and useful. Meter must be used on DC only. Thin red and black wire go to source of power for meter 4VDC up to 28VDC. Thin yellow wire can be used to measure 0-100V with negative lead of source to measured connecting to the thin black wire. Current is measured using thick red and black leads. Please do not exceed ratings or connect up differently than listed as these are factory tested new units and we can't replace damaged units! Brand new!
