Features:
Individual Select Controls
550ps Max. D to Output
800ps Max. SEL to Output
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V
Internal Input Pulldown Resistors
Transistor Count = 137 devices
Datasheet Available:On Semi MC10E157FN
PLCC 28 package. Manufactured by On Semi.
A20284S

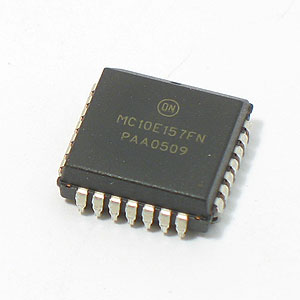

A20284S - MC10E157FN 5V SMD ECL Quad 2:1 Multiplexer (On Semi)
Detailed Description
The MC10E157FN contains four 2:1 multiplexers with differential outputs. The output data are controlled by the individual Select (SEL) inputs. The individual select control makes the devices well suited for random logic designs.Features:
Individual Select Controls
550ps Max. D to Output
800ps Max. SEL to Output
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V
Internal Input Pulldown Resistors
Transistor Count = 137 devices
Datasheet Available:On Semi MC10E157FN
PLCC 28 package. Manufactured by On Semi.
A20284S
