This device is a 16-bit buffer and line driver featuring non-inverting 3-State bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
Features:
16-bit bus interface
3-State buffers
Output capability: +12mA/-12mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Outputs include series resistance of 30W making external terminating resistors unnecessary
Power-up 3-State
No bus current loading when output is tied to 5V bus
Datasheet Available:Phillips 74LVT162244BDL
SSOP 48 package. Manufactured by Phillips.
A20282S

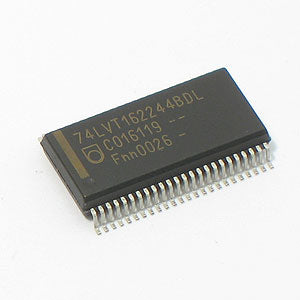

A20282S - 74LVT162244BDL SMD 3.3V 16-bit Buffer/Driver (Phillips)
Detailed Description
The 74LVT162244BDL is a high-performance BiCMOS product designed for VCC operation at 3.3V. The 74LVT162244BDL is designed with 30W series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus receivers/transmitters.This device is a 16-bit buffer and line driver featuring non-inverting 3-State bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
Features:
16-bit bus interface
3-State buffers
Output capability: +12mA/-12mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Outputs include series resistance of 30W making external terminating resistors unnecessary
Power-up 3-State
No bus current loading when output is tied to 5V bus
Datasheet Available:Phillips 74LVT162244BDL
SSOP 48 package. Manufactured by Phillips.
A20282S
