Features:
Contains Eight D-Type Flip-FlopsWith Single-Rail Outputs
Clock Enable Latched to Avoid False Clocking
Applications:
Buffer/Storage Registers
Shift Registers
Pattern Generators
Buffered Common Enable Input
20 pin DIP. Manufactured by Texas Instruments.
A20004

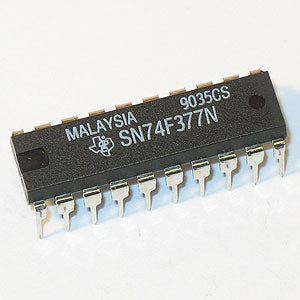

A20004 - SN74F377N Octal D-Type Flip-Flop with Clock Enable (TI)
Detailed Description
The SN74F377N is a monolithic, positive-edge-triggered, octal, D-type flip-flop with clock enable inputs. The SN74F377N features a latched clock enable (CE) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse if CE is low. Clock triggering occurs at a particular voltage level and is not directly related to the positive-going pulse. When the clock input is at either the high or low level, the D input signal has no effect at the output. The circuits are designed to prevent false clocking by transitions at the CE input. The SN74F377N is characterized for operation from 0?C to 70?C.Features:
Contains Eight D-Type Flip-FlopsWith Single-Rail Outputs
Clock Enable Latched to Avoid False Clocking
Applications:
Buffer/Storage Registers
Shift Registers
Pattern Generators
Buffered Common Enable Input
20 pin DIP. Manufactured by Texas Instruments.
A20004
