Detailed Description

The 74F174N has six edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common buffered Clock (CP) and Master Reset (MR) inputs load and reset (clear) all flip-flops simultaneously. The register is fully edge-triggered. The state of each D input, one setup time before the Low-to-High clock transition is transferred to the corresponding flip-flop?s Q output. All Q outputs will be forced Low independent of Clock or Data inputs by a Low voltage level on the MR input. The device is useful for applications where true outputs only are required, and the Clock and Master Reset are common to all storage elements.

Features:
Six edge-triggered D-type flip-flops
Buffered common Clock
Buffered, asynchronous Master Reset

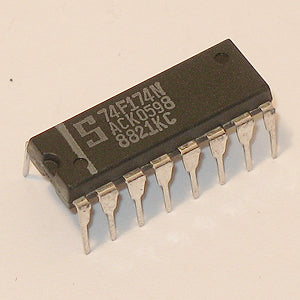

16 pin DIP. Manufactured by Signetics.
A10248
