Detailed Description

The 74HCT175N is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It's specified in compliance with JEDEC standard no. 7A. The 74HCT175N has four edge-triggered, D-type flip-flops with individual D inputs and both Q and Q outputs. The common clock (CP) and master reset (MR) inputs load and reset (clear) all flip-flops simultaneously. The state of each D input, one set-up time before the LOW-to-HIGH clock transition, is transferred to the corresponding output (Qn) of the flip-flop. All Qn outputs will be forced LOW independently of clock or data inputs by a LOW voltage level on the MR input. The device is useful for applications where both the true and complement outputs are required and the clock and master reset are common to all storage elements.

Features:
Four edge-triggered D flip-flops
Output capability: standard
ICC category: MSI

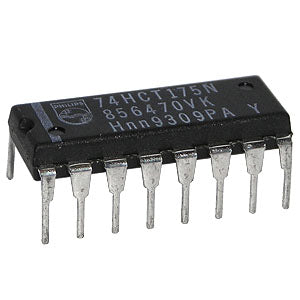

16 pin DIP. Manufactured by Phillips.
