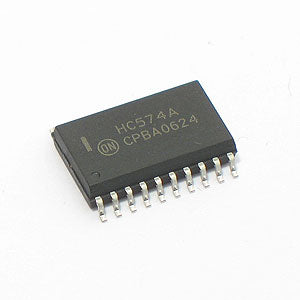

A20421 - MC74HC574A Octal D-Type 3-State Flip-Flop (On Semi)

A20421 - MC74HC574A Octal D-Type 3-State Flip-Flop (On Semi)

item number: A20421
unit price:£1.00

Detailed Description

The MC74HC574A is identical in pinout to the LS574. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Data meeting the setup time is clocked to the outputs with the rising edge of the Clock. The Output Enable input does not affect the states of the flip-flops, but when Output Enable is high, all device outputs are forced to the high-impedance state. Thus, data may be stored even when the outputs are not enabled. The MC74HC574A is identical in function to the MC74HCT374A but has the flip-flop inputs on the opposite side of the package from the outputs to facilitate PC board layout.

Features:
Output Drive Capability: 15 LSTTL Loads
Outputs Directly Interface to CMOS, NMOS and TTL
Operating Voltage Range: 2.0 to 6.0 V
Low Input Current: 1.0 mA
In Compliance with the Requirements Defined by JEDEC Standard No. 7A
Chip Complexity: 266 FETs or 66.5 Equivalent Gates

Datasheet Available:On Semi MC74HC574A

SOIC 20 package. Manufactured by On Semiconductor.
A20421
