Features:
Buffered Inputs
Typical Propagation Delay: 8ns at VCC = 5V, CL = 15pF, TA = 25?C
Fanout (Over Temperature Range)
-Standard Outputs . . .10 LSTTL Loads
-Bus Driver Outputs . . .15 LSTTL Loads
Wide Operating Temperature Range . . .-55?C to 125?C
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
2V to 6V Operation
High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
14 pin DIP. Manufactured by Harris.
A20006

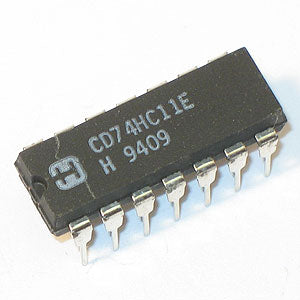

A20006 - CD74HC11E CMOS Logic Triple 3-Input AND Gate (Harris)
Detailed Description
The CD74HC11E logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. All devices have the ability to drive 10 LSTTL loads.Features:
Buffered Inputs
Typical Propagation Delay: 8ns at VCC = 5V, CL = 15pF, TA = 25?C
Fanout (Over Temperature Range)
-Standard Outputs . . .10 LSTTL Loads
-Bus Driver Outputs . . .15 LSTTL Loads
Wide Operating Temperature Range . . .-55?C to 125?C
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
2V to 6V Operation
High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
14 pin DIP. Manufactured by Harris.
A20006
