Features:
Switching specifications at 50 pF
Switching specifications guaranteed over full temperature and VCC range
Advanced oxide-isolated, ion-implanted Schottky TTL process
Functionally and pin for pin compatible with Schottky, low power Schottky, and advanced low power Schottky TTL counterpart
Improved AC performance over Schottky, low power Schottky, and advanced low power Schottky counterparts
SOIC 14 package. Actual brand may vary from picture.
A11139S

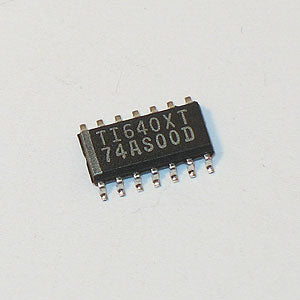

A11139S - 74AS00D SMD Quad 2-Input NAND Gate
Detailed Description
This device contains four independent gates, each of which performs the logic NAND function.Features:
Switching specifications at 50 pF
Switching specifications guaranteed over full temperature and VCC range
Advanced oxide-isolated, ion-implanted Schottky TTL process
Functionally and pin for pin compatible with Schottky, low power Schottky, and advanced low power Schottky TTL counterpart
Improved AC performance over Schottky, low power Schottky, and advanced low power Schottky counterparts
SOIC 14 package. Actual brand may vary from picture.
A11139S
