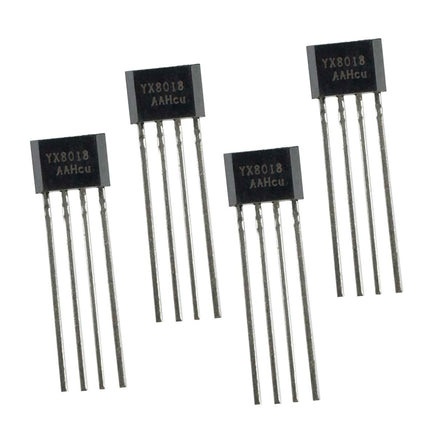

G28052 ~ (Pkg 5) YX8018 Solar Lawn Light Control and Voltage Booster IC

G28052 ~ (Pkg 5) YX8018 Solar Lawn Light Control and Voltage Booster IC

item number: G28052
unit price:$4.00

Detailed Description

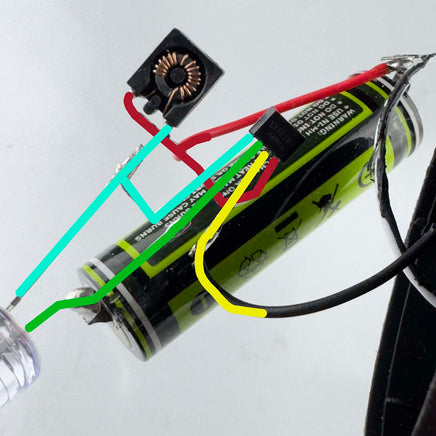

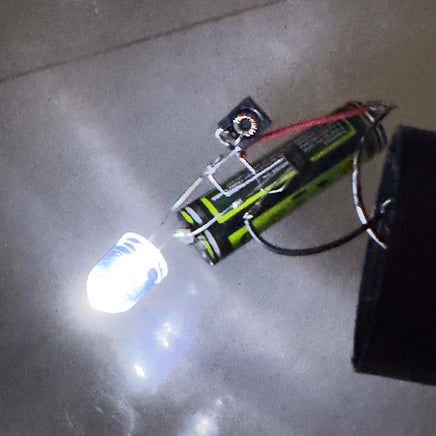

Amazing 4 lead TO-94 IC is the heart of almost every common simple solar landscape light. So simple to use! Operates on 1.2V (most rechargeable single cells), and requires only a single inductor if you wish to boost your 1.2V cell up to almost 3V to illuminate a white LED. The inductor can be 14UH up to 560UH. The lower inductance the higher the current output to your white or other color LED. If you wish to construct an automatic solar landscape light that activates at night, just add a small solar panel such as our G27251 (not included). Very simple to use. See PDF. Sold in a package of 5.

Related Items
G27251 - Small 1.2" sq Glass Solar Panel Mounted in 1.82" dia. Cylinder 2.4VDC 25mA
G25703 - (Pkg 3) Tiny Rectangular Radial 14UH Coil
