Features:
Buffered Inputs and Outputs
Applications:
Expand Any Data Input Point
Multiplex Dual Data Buses
Generate Four Functions of Two Variables (One Variable Is Common)
Source Programmable Counters

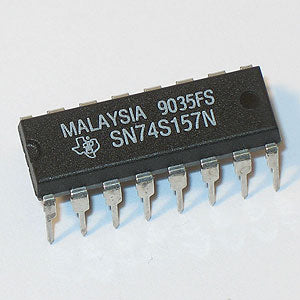

16 pin DIP. Actual brand may vary from picture.
G12630
G12630 - 74S157 Quad Data Selectors/Multiplexer
Detailed Description
These monolithic data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates. A separate strobe input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The 74S157 presents true data.Features:
Buffered Inputs and Outputs
Applications:
Expand Any Data Input Point
Multiplex Dual Data Buses
Generate Four Functions of Two Variables (One Variable Is Common)
Source Programmable Counters
16 pin DIP. Actual brand may vary from picture.
G12630
