Detailed Description

These devices contain four independent 2-input AND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels. The 74S09 is characterized for operation from 0°C to 70° C.

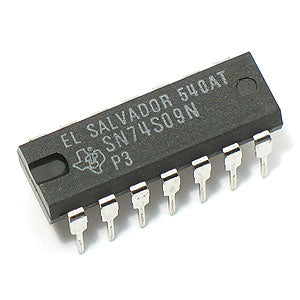

14 pin DIP. Actual brand may vary from picture.
G12609
