Detailed Description

The 74VCX16245MTD contains sixteen non-inverting bidirectional buffers with 3-state outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate 3-state control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state. The 74VCX16245MTD is designed for low voltage (1.2V to 3.6V) VCC applications with I/O compatibility up to 3.6V. The 74VCX16245MTD is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining low CMOS power dissipation.

Features:
1.2V to 3.6V VCC supply operation
3.6V tolerant inputs and outputs
tPD 2.5 ns max for 3.0V to 3.6V VCC
Power-off high impedance inputs and outputs
Supports live insertion/withdrawal
Static Drive (IOH/IOL) r24 mA @ 3.0V VCC
Uses patented noise/EMI reduction circuitry
Latchup performance exceeds 300 mA

Datasheet Available:Fairchild 74VCX16245MTD

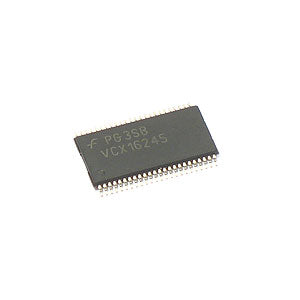

TSSOP 48 package. Manufactured by Fairchild.
A20493S
