Features:
100 A (2/10 ?s) per Bellcore GR1089 (Intra-Building)
Protects 2 lines
ESD protection
Low capacitance 8 pF
Applications:
T1/E1 line cards
ISDN U-Interface and S/T Interface
xDSL
Ethernet ? 10/100 Base T
Datasheet Available:Bourns CDNBS08-PLC03-3.3
SOIC 8 package. Manufactured by Bourns.
A20490S

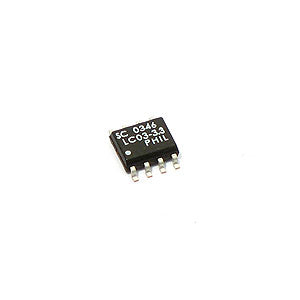

A20490S - CDNBS08-PLC03-3.3 SMD Steering Diode/TVS Array (Bourns)
Detailed Description
The CDNBS08-PLC03-3.3 is a steering diode/transient voltage suppressor array combination diode for surge and ESD protection applications in an 8 Lead Narrow Body SOIC package size format. The CDNBS08-PLC03-3.3 conforms to JEDEC standards, is easy to handle on standard pick and place equipment and their flat configuration minimizes roll away. The CDNBS08-PLC03-3.3 meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge) requirements.Features:
100 A (2/10 ?s) per Bellcore GR1089 (Intra-Building)
Protects 2 lines
ESD protection
Low capacitance 8 pF
Applications:
T1/E1 line cards
ISDN U-Interface and S/T Interface
xDSL
Ethernet ? 10/100 Base T
Datasheet Available:Bourns CDNBS08-PLC03-3.3
SOIC 8 package. Manufactured by Bourns.
A20490S
