Features:
Ultra high speed: tPD 3.6ns Typ into 50pF at 5V VCC
High Output Drive: ?24mA at 3V VCC
Broad VCC operating range: 1.65V to 5.5V
Matches the performance of LCX when operated at 3.3V VCC
Power down high impedance inputs/outputs
Overvoltage tolerant inputs facilitate 5V to 3V translation
Patented noise/EMI reduction circuitry implemented

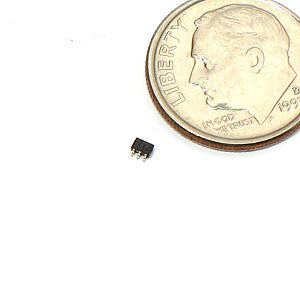

SC-70 package. Actual brand may vary from picture.
A20444
A20444 - NC7WZ17P6X UHS Dual Buffer
Detailed Description
The NC7WZ17P6X is a dual buffer with Schmitt trigger inputs. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V V CC range. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. Schmitt trigger inputs typically achieve 1V hysteresis between the positive going and negative going input threshold voltage at 5V VCC.Features:
Ultra high speed: tPD 3.6ns Typ into 50pF at 5V VCC
High Output Drive: ?24mA at 3V VCC
Broad VCC operating range: 1.65V to 5.5V
Matches the performance of LCX when operated at 3.3V VCC
Power down high impedance inputs/outputs
Overvoltage tolerant inputs facilitate 5V to 3V translation
Patented noise/EMI reduction circuitry implemented
SC-70 package. Actual brand may vary from picture.
A20444
