Features:
600ps Max. Propagation Delay
OR/NOR Function Outputs
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = 4.2 V to 5.7 V
Internal Input 50k Ohm Pulldown Resistors
ESD Protection: > 2 KV HBM, > 200 V MM
Flammability Rating: UL-94 code V-0 @ 1/8",Oxygen Index 28 to 34
Transistor Count = 134 devices
Datasheet Available:On Semi MC10E104FN
PLCC 28 package. Manufactured by On Semiconductor.
A20422

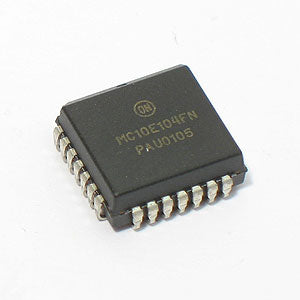

A20422 - MC10E104FN 5V ECL Quint 2-Input AND/NAND Gate (On Semi)
Detailed Description
The MC10E104FN is a quint 2-input AND/NAND gate. The function output F is the OR of all five AND gate outputs, while /F is the NOR. The Q outputs need not be terminated if only the F outputs are to be used. The MC10E104FN contains temperature compensation.Features:
600ps Max. Propagation Delay
OR/NOR Function Outputs
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = 4.2 V to 5.7 V
Internal Input 50k Ohm Pulldown Resistors
ESD Protection: > 2 KV HBM, > 200 V MM
Flammability Rating: UL-94 code V-0 @ 1/8",Oxygen Index 28 to 34
Transistor Count = 134 devices
Datasheet Available:On Semi MC10E104FN
PLCC 28 package. Manufactured by On Semiconductor.
A20422
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov - Why is this here?
