Features:
Propagation Delay, 1.7 ns Typical
Power Dissipation, 460 mW Typical
Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
Voltage Compensated
MECL 10K Compatible
Datasheet Available:Motorola MC10H186
PLCC 20 package. Manufactured by Motorola.
A20383

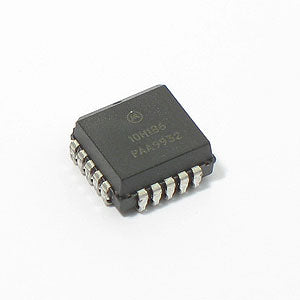

A20383 - MC10H186 Hex D Master-Slave Flip-Flop with Reset (Motorola)
Detailed Description
The MC10H186 is a hex D type flip-flop with common reset and clock lines. This device is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in clock toggle frequency and propagation delay and no increase in power-supply current.Features:
Propagation Delay, 1.7 ns Typical
Power Dissipation, 460 mW Typical
Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
Voltage Compensated
MECL 10K Compatible
Datasheet Available:Motorola MC10H186
PLCC 20 package. Manufactured by Motorola.
A20383
