Detailed Description

The AT29C512-70JI is a 5-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 512K of memory is organized as 65,536 words by 8 bits. Manufactured with Atmel's advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 275 mW over the industrial temperature range. When the device is deselected, the CMOS standby current is less than 300uA. The device endurance is such that any sector can typically be written to in excess of 10,000 times. To allow for simple in-system reprogrammability, the AT29C512-70JI does not require high input voltages for programming. Five-volt-only commands determine the operation of the device. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT29C512-70JI is performed on a sector basis; 128 bytes of data are loaded into the device and then simultaneously programmed. During a reprogram cycle, the address locations and 128 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a program cycle, the device will automatically erase the sector and then program the latched data using an internal control timer. The end of a program cycle can be detected by DATA polling of I/O7. Once the end of a program cycle has been detected, a new access for a read or program can begin.

Features:
Fast Read Access Time 70 ns
5-volt Only Reprogramming
Sector Program Operation:
Single Cycle Reprogram (Erase and Program)
512 Sectors (128 Bytes/Sector)
Internal Address and Data Latches for 128 Bytes
Internal Program Control and Timer
Hardware and Software Data Protection
Fast Sector Program Cycle Time 10 ms
DATA Polling for End of Program Detection
Low Power Dissipation:
50 mA Active Current
300uA CMOS Standby Current
Typical Endurance > =10,000 Cycles
Single 5V±10% Supply
CMOS and TTL Compatible Inputs and Outputs

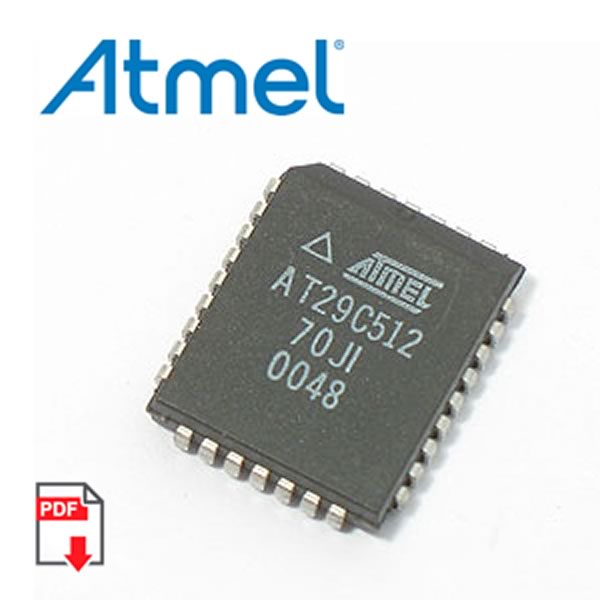

PLCC 32 package. Manufactured by Atmel.
