Features:
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
PNP Inputs Reduce DC Loading
Hysteresis at Inputs Improves Noise Margins
20 pin DIP.
Manufactured by Texas Instruments.

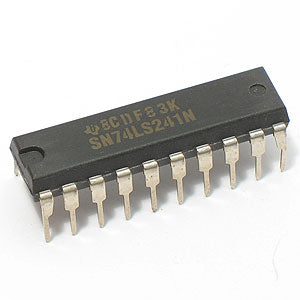

A20333 - SN74LS241N Octal Buffer & Line Driver w/3-State Outputs (TI)
Detailed Description
These octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and noninverting outputs, symmetrical, active-low output-control (G)\ inputs, and complementary output-control (G and G\) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS241N can be used to drive terminated lines down to 133 Ohm.Features:
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
PNP Inputs Reduce DC Loading
Hysteresis at Inputs Improves Noise Margins
20 pin DIP.
Manufactured by Texas Instruments.
