Features:
Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
?24-mA Output Drive Current: Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Datasheet Available:Texas Instruments CD74ACT20M96
SOIC 14 package. Manufactured by Texas Instruments.
A20314S

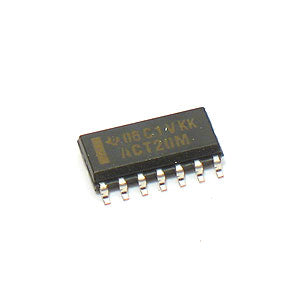

A20314S - CD74ACT20M96 SMD Dual 4-Input NAND Gate (TI)
Detailed Description
The CD74ACT20M96 devices contain two independent 4-input NAND gates. They perform the Boolean function Y = (A ? B ? C ? D)\ or Y = A\ + B\ + C\ + D\ in positive logic.Features:
Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
?24-mA Output Drive Current: Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Datasheet Available:Texas Instruments CD74ACT20M96
SOIC 14 package. Manufactured by Texas Instruments.
A20314S
