Features:
Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA
Datasheet Available:Texas Instruments SN74AHCT125PWR
TSSOP 14 package. Manufactured by Texas Instruments.
A20277S

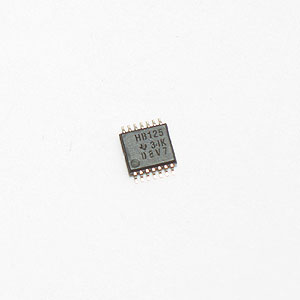

A20277S - SN74AHCT125PWR SMD Quad Bus Buffer Gates (TI)
Detailed Description
The SN74AHCT125PWR is a quadruple bus buffer gate featuring independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE)\ input is high. When OE\ is low, the respective gate passes the data from the A input to its Y output. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.Features:
Inputs Are TTL-Voltage Compatible
Latch-Up Performance Exceeds 250 mA
Datasheet Available:Texas Instruments SN74AHCT125PWR
TSSOP 14 package. Manufactured by Texas Instruments.
A20277S
