The DS90LV027A has a flow-through design for easy PCB layout. The differential driver outputs provides low EMI with its typical low output swing of 360 mV. It is perfect for high speed transfer of clock and data. The DS90LV027A can be paired with its companion dual line receiver, the DS90LV028A, or with any of National's LVDS receivers, to provide a high-speed point-to-point LVDS interface.
Features:
>600 Mbps (300MHz) switching rates
0.3 ns typical differential skew
0.7 ns maximum differential skew
1.5 ns maximum propagation delay
3.3V power supply design
?360 mV differential signaling
Low power dissipation (46 mW @ 3.3V static)
Flow-through design simplifies PCB layout
Interoperable with existing 5V LVDS devices
Power Off Protection (outputs in high impedance)
Conforms to TIA/EIA-644 Standard
Industrial temperature operating range (-40?C to +85?C)
Datasheet Available:National DS90LV027A
SOIC 8 package. Manufactured by National.
A20270S

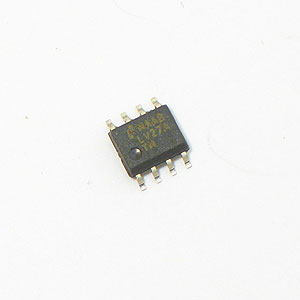

A20270S - DS90LV027A SMD LVDS Dual Differential Driver (National)
Detailed Description
The DS90LV027A is a dual LVDS driver device optimized for high data rate and low power applications. The device is designed to support data rates in excess of 600Mbps (300MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS90LV027A is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized.The DS90LV027A has a flow-through design for easy PCB layout. The differential driver outputs provides low EMI with its typical low output swing of 360 mV. It is perfect for high speed transfer of clock and data. The DS90LV027A can be paired with its companion dual line receiver, the DS90LV028A, or with any of National's LVDS receivers, to provide a high-speed point-to-point LVDS interface.
Features:
>600 Mbps (300MHz) switching rates
0.3 ns typical differential skew
0.7 ns maximum differential skew
1.5 ns maximum propagation delay
3.3V power supply design
?360 mV differential signaling
Low power dissipation (46 mW @ 3.3V static)
Flow-through design simplifies PCB layout
Interoperable with existing 5V LVDS devices
Power Off Protection (outputs in high impedance)
Conforms to TIA/EIA-644 Standard
Industrial temperature operating range (-40?C to +85?C)
Datasheet Available:National DS90LV027A
SOIC 8 package. Manufactured by National.
A20270S
